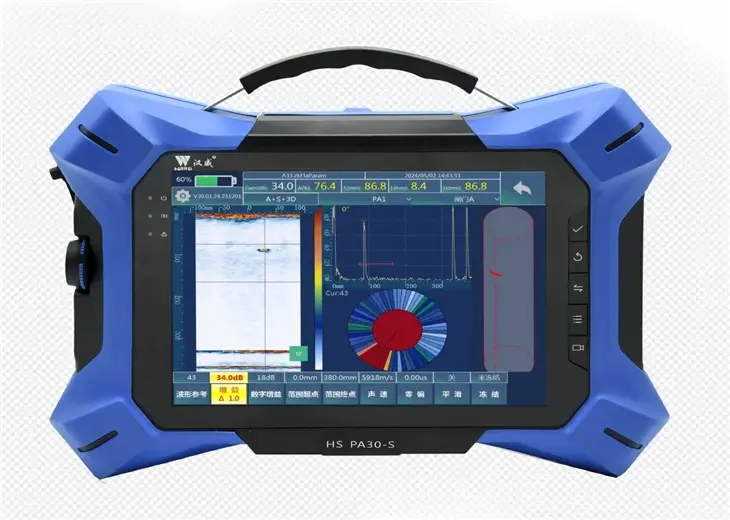

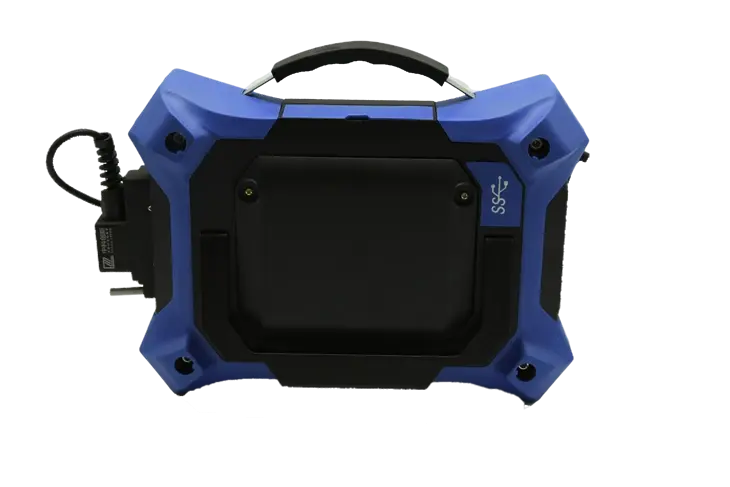

HSPA30-S Phased Array Ultrasonic Detector
The HSPA30-S is a compact phased-array ultrasonic detector for bolt cracks, fastener preload and general flaw detection. Integrated phased array, TOFD, A-scan and bolt-stress functions provide a portable solution for field inspections.
Guaranteed Safe Checkout:
Overview
The HSPA30-S integrates phased-array inspection, TOFD, A-scan and bolt-stress measurement in a portable instrument. It supports rapid crack detection in bolts and evaluation of fastening stress, as well as localization of internal discontinuities in industrial components.
Automatic element calibration and intelligent waveform search simplify setup and help operators interpret results in plates, welds, castings, forgings and pipes.
Performance Features
- 16/64 PR or 16/128 PR phased-array configurations
- Phased array, TOFD, A-scan and bolt-stress modes
- Bolt-crack detection and preload measurement
- Automatic phased-array element calibration
- Intelligent one-click waveform search
- Acoustic-time measurement resolution down to 1 ns
- A, C, L and 3D result views
- 8.4-inch capacitive touchscreen with 1024 × 768 resolution
- 256 GB SSD
- Continuous operating time of at least 4 hours
Applications
- Bolt-crack and fastener-stress inspection
- Plates and welded joints
- Castings and forgings
- Pipes
- Metallic and non-metallic materials
Key Specifications
| Parameter | Value |
|---|---|
| PA configuration | 16/64 PR or 16/128 PR |
| Conventional channels | 4-channel TOFD / 2-channel stress |
| Inspection modes | Phased array, TOFD, A-scan, bolt stress |
| Focal laws | 256 |
| Display views | A, C, L, 3D |
| Display | 8.4 in, 1024 × 768 capacitive touchscreen |
| Storage | 256 GB SSD |
| Battery operation | ≥ 4 hours |
