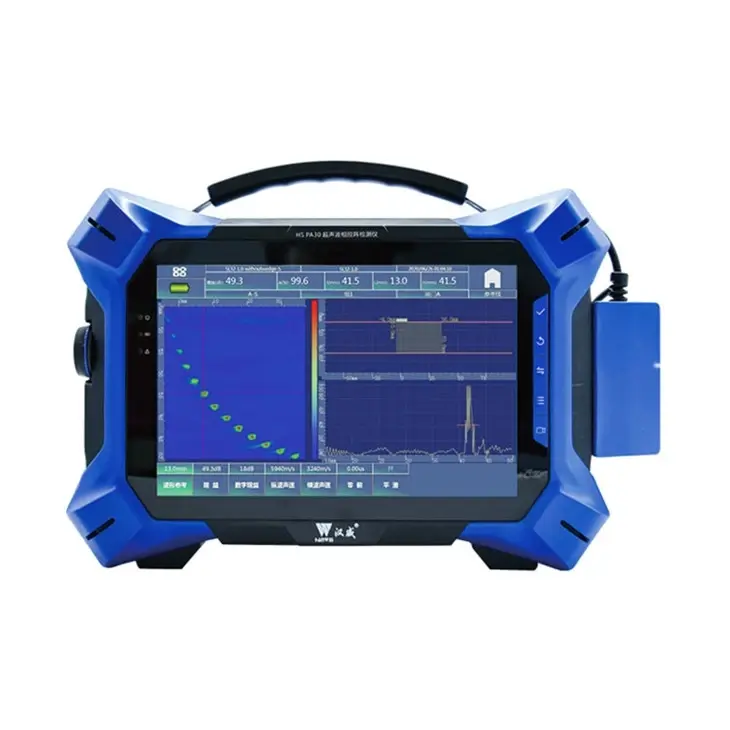

HSPA30-E Ultrasonic Phased Array Detector
The HSPA30-E is a phased-array ultrasonic detector for welds, plates, pipes and complex materials. Dual phased-array and TOFD imaging, DLA/DMA support and two-axis encoding enable efficient inspection of thick welds and corrosion mapping.
Guaranteed Safe Checkout:
Overview
The HSPA30-E is designed for demanding phased-array inspections and rapid processing of inspection data. Configurations with 32/64 PR or 32/128 PR channels work with four TOFD channels and conventional A-scan.
Combined PA and TOFD imaging can inspect welded joints up to 100 mm thick in a single pass, while DLA and DMA techniques support austenitic stainless-steel applications.
Performance Features
- 32/64 PR or 32/128 PR phased-array configurations
- Four TOFD channels and conventional A-scan
- Simultaneous phased-array and TOFD visualization
- DLA and DMA support for austenitic stainless steel
- Two-axis encoder for 2D corrosion C-scan mapping
- High-speed network data transfer
- Single-pass inspection of welds up to 100 mm thick
- 10.1-inch capacitive touchscreen with 1280 × 800 resolution
- Continuous operating time of at least 4 hours
Applications
- Plates, pipes and welded joints
- Austenitic stainless steel
- Polyethylene pipes
- Composite materials
- TKY joints and flanges
- Turbine blades
Key Specifications
| Parameter | Value |
|---|---|
| PA configuration | 32/64 PR or 32/128 PR |
| TOFD channels | 4 channels (2 pitch-catch pairs) |
| Focal laws | 256 |
| Inspection modes | Phased array, TOFD, A-scan |
| Display | 10.1 in, 1280 × 800 capacitive touchscreen |
| Storage | 256 GB SSD |
| Ethernet | 1000 Mb/s |
| Maximum weld thickness per pass | 100 mm |
| Battery operation | ≥ 4 hours |
