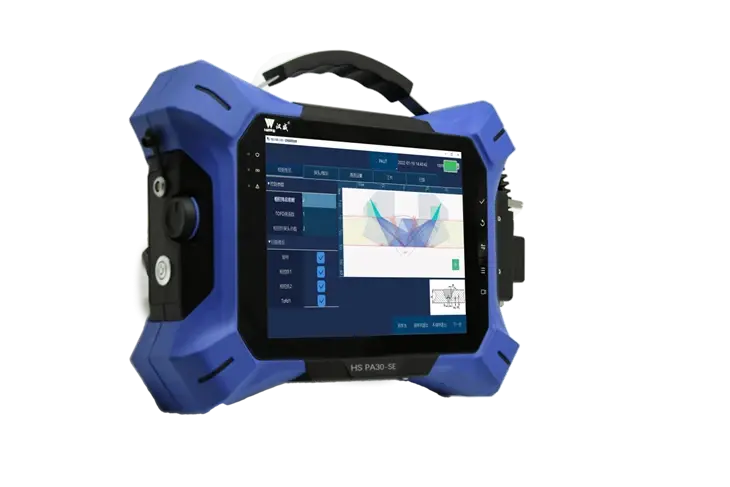

HS PA30-SE Ultrasonic Phased Array Inspection System
The HS PA30-SE is a multifunctional phased-array inspection system for rapid bolt-crack detection, fastener preload measurement and ultrasonic examination of industrial components. Four inspection modes and up to 128 receiving channels combine portable field operation with precise 1 ns acoustic-time measurement.
Guaranteed Safe Checkout:
Overview
The HS PA30-SE combines phased-array inspection, bolt-stress measurement, TOFD and conventional A-scan in one portable instrument. It is designed to detect cracks in bolts, evaluate fastener preload and locate internal discontinuities in metallic and non-metallic components.
Automatic element calibration and multiple visualization modes support fast setup and clear interpretation in field inspections of plates, welds, castings, forgings and pipes.
Performance Features
- Four operating modes: phased array, bolt stress, TOFD and A-scan
- Phased-array architecture with up to 128 receiving channels
- Rapid bolt-crack detection and fastener preload measurement
- Automatic phased-array element calibration
- A, C, L and 3D result views
- Acoustic-time measurement resolution down to 1 ns
- Wi-Fi, LAN and data-expansion interfaces
- Touchscreen, physical buttons and rotary controls
- Sealed IP66 enclosure for field use
- Continuous operating time of at least 4 hours
Applications
- Bolts and fastened joints
- Plates and welded joints
- Castings and forgings
- Pipes
- Metallic and non-metallic materials
Key Specifications
| Parameter | Value |
|---|---|
| Inspection modes | Phased array, bolt stress, TOFD, A-scan |
| PA configuration | 16/64 or 16/128 |
| Conventional channels | 4-channel TOFD / 2-channel stress |
| Display views | A, C, L, 3D |
| Acoustic-time resolution | Up to 1 ns |
| Storage | 256 GB |
| Connectivity | Wi-Fi, LAN, data-expansion interface |
| Protection rating | IP66 |
| Battery operation | ≥ 4 hours |
