CRY8125

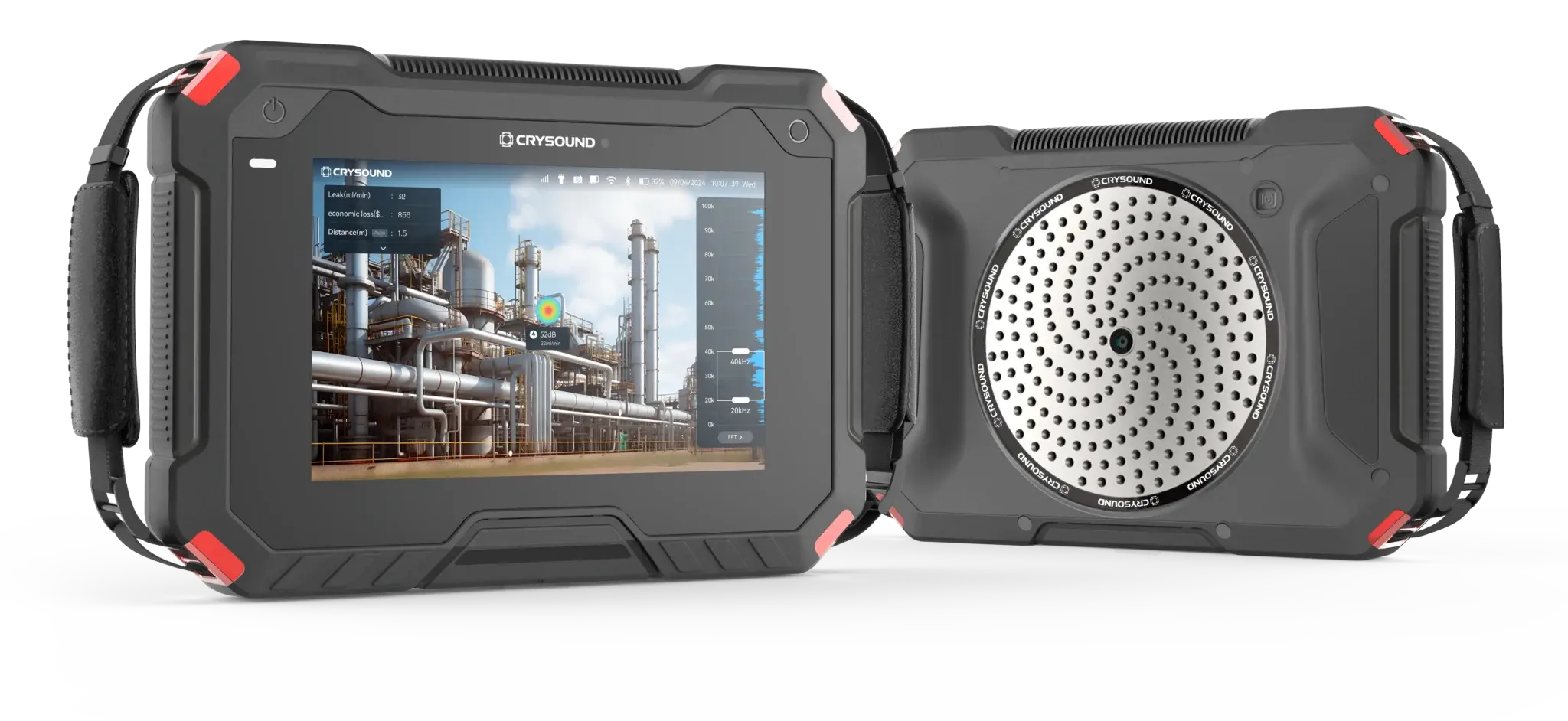

The CRY8125 is an intrinsically safe handheld acoustic imaging camera designed for inspections in potentially explosive gas and dust atmospheres. TÜV-certified under ATEX and IECEx for Zone 2, it complies with IEC 60079-0 and IEC 60079-11.

Its 200-MEMS microphone array and frequency range from 2 to 100 kHz help operators locate pressurized gas and vacuum leaks, screen electrical equipment for partial discharge, and detect abnormal sound sources in mechanical equipment. The camera measures leak rate, estimates associated losses, displays PRPD patterns, and classifies partial discharge types. Inspection data can be transferred to the reporting software for further analysis and documentation.

IMPORTANT FEATURES

• TÜV-certified under ATEX and IECEx for use in Zone 2 gas and dust atmospheres
• Compliance with IEC 60079-0 and IEC 60079-11

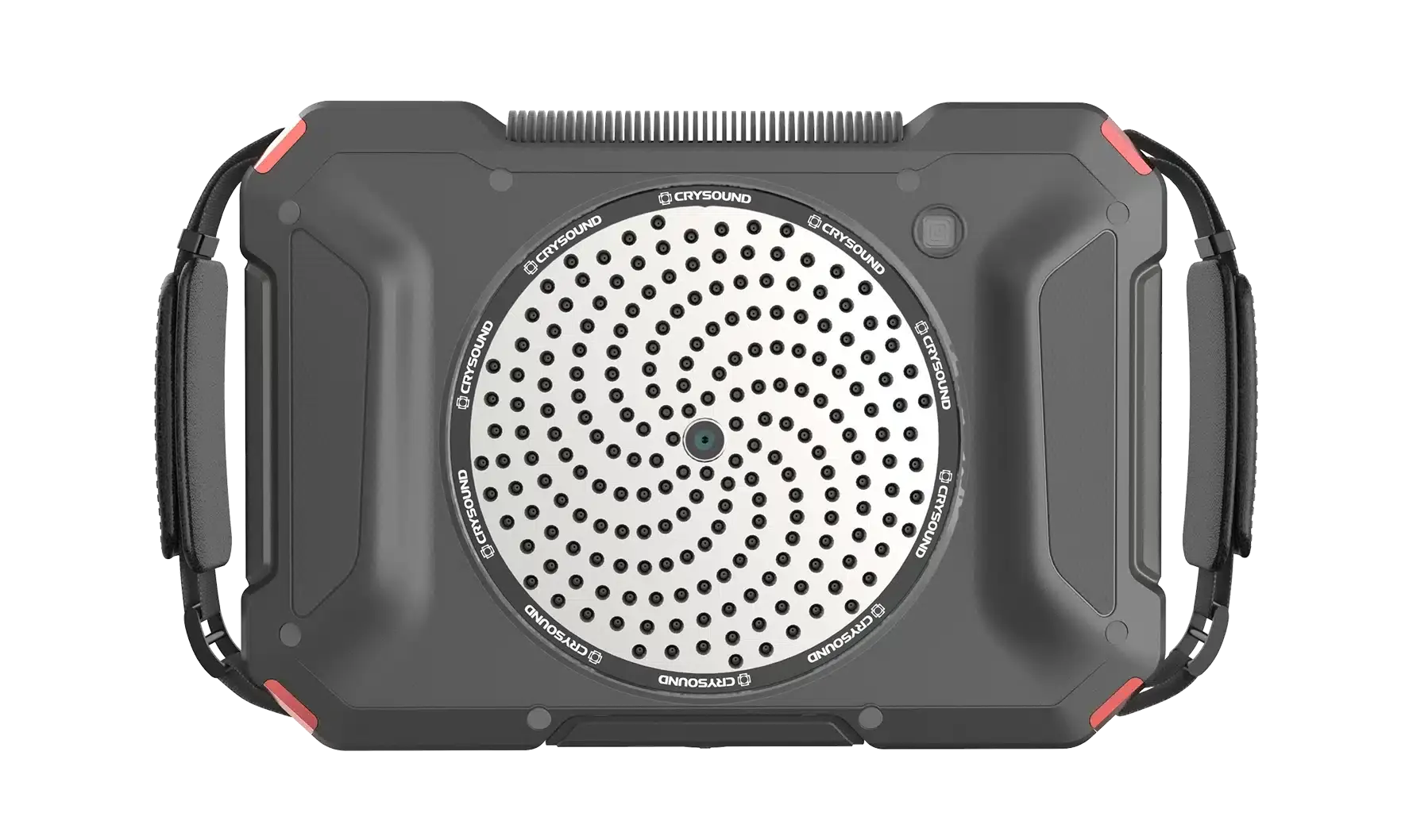

• Acoustic array with 200 MEMS microphones
• Wide frequency range from 2 to 100 kHz
• Gas and vacuum leak localization with real-time leak-rate measurement and loss estimation
• Partial discharge localization and type classification with PRPD analysis
• Test distance from 0.2 to 200 m

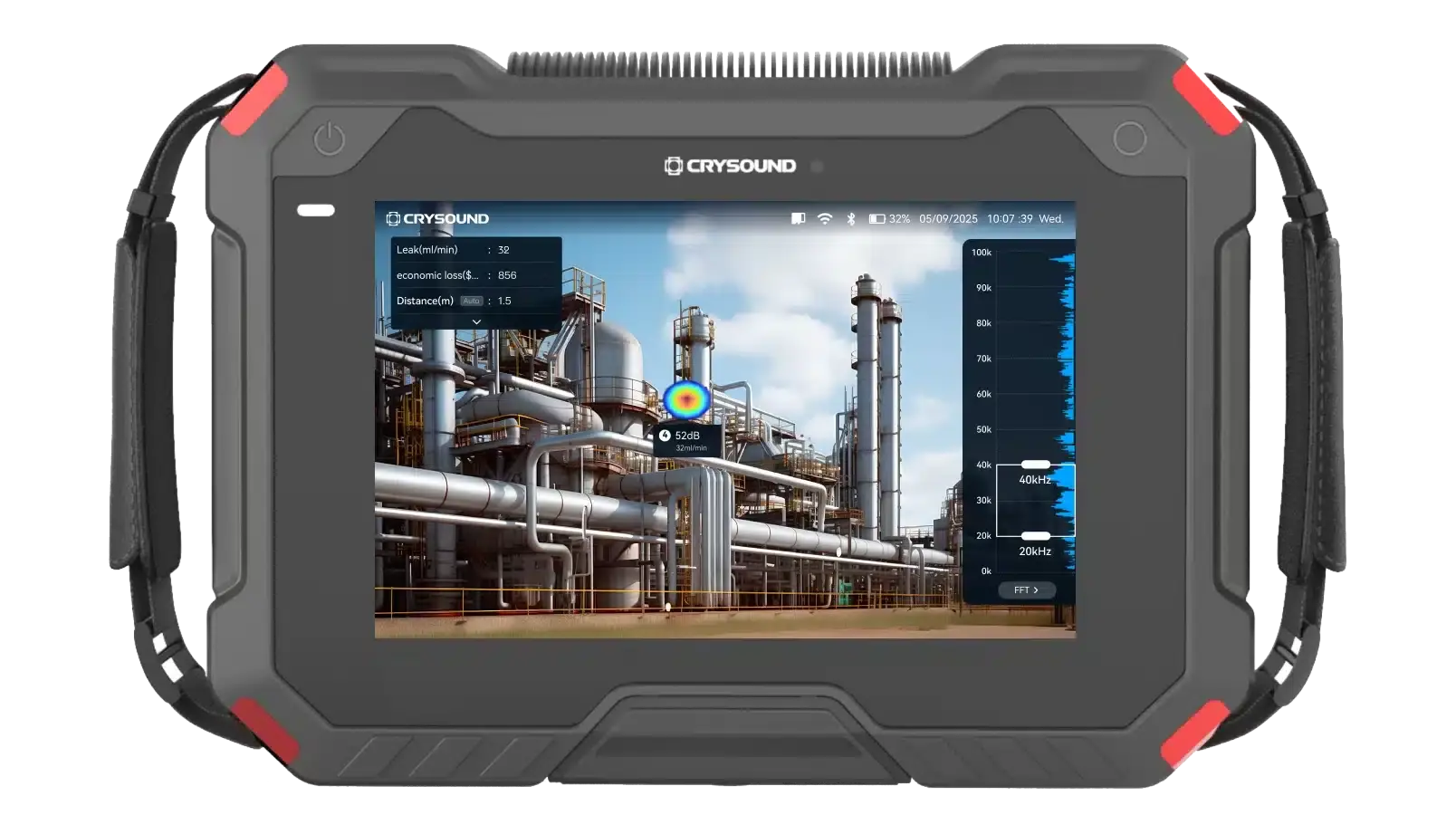

• 8-inch, 1920 × 1200 touchscreen with 600-nit brightness
• Lightweight 1.4 kg design for one-handed operation
• Two replaceable smart batteries providing up to 10 hours of total operation
• Wi-Fi, Bluetooth 5.2, USB-C and microSD connectivity
• Reporting software for acoustic and infrared data analysis
